Crack depth meter 281M – High-precision instrument for measuring the depth of cracks exposed on various metals and alloys (incl. stainless steel, duraluminum), previously detected by other methods.

The operating principle of the Crack Depth Meter – AC electro potential measuring that provides prompt and precise depth test (in comparison to traditional methods) The device is the most efficient in combination with other crack-revealing methods magnetic particle, capillary or eddy-current.

Crack Depth Gauge

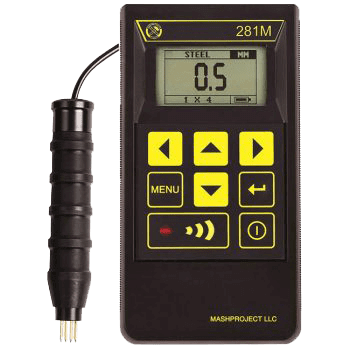

Crack depth meter 281M

High-precision instrument for measuring the depth of cracks exposed on various metals and alloys (incl. stainless steel, duraluminum), previously detected by other methods. The operating principle of the Crack Depth Meter – AC electro potential measuring that provides prompt and precise depth test (in comparison to traditional methods).

The device is the most efficient in combination with other crack-revealing methods: magnetic particle, capillary or eddy-current.

TYPICAL CONTROL OBJECTS:

Shafts, rolls, rolling mills, details of constructions, machines and mechanisms
Pipes, tubes, oil-and-gas pipelines;
Pressure vessels;
Energy industry devices

OPERATIONAL ADVANTAGES

Сontrol of ferromagnetic and non-ferromagnetic materials(stainless steel, aluminum alloys, etc.)
Wide measuring range – from 0.2 to 100.0 mm.
Low impact of the material electromagnetic properties on themeasurement result.
Mobile spring-loaded contact electrodes of the sensor enable theuser to perform measurements on curved surfaces
Crack Depth Meter works successfully in field, workshop andlaboratory conditions.
